LBGR100J Model 5 KN Tower Erection Tools Fixed Style With Manual Winch

LBGR100J Model 5 KN Tower Erection Tools Fixed Style With Manual Winch
LBGR100J Model 5 KN Tower Erection Tools Fixed Style With Manual Winch

Large Image :  LBGR100J Model 5 KN Tower Erection Tools Fixed Style With Manual Winch

Product Details:
Place of Origin: NINGBO CHIAN
Brand Name: Linkai
Certification: ISO CE
Model Number: LBGR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Model: LBGR100J Name: A-shape Gin Pole
Type: With Manual Winch Materail: Aluminum Alloy
Output: 5 KN Max Length: 19 M
High Light:

Tower Erection Tools Fixed Style

,

5 KN Tower Erection Tools

,

Manual Winch Fixed Style

Aluminum Alloy Tubular A-Shape Gin Pole With Manual Winch For Tower Erection

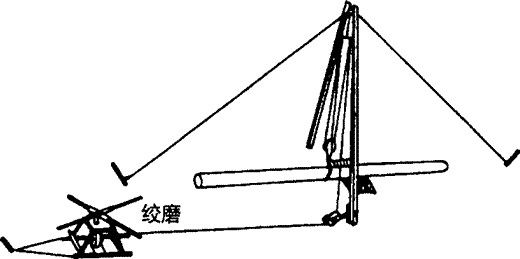

This aluminum alloy tubular A-shape gin pole is ideal for setting up a small single pole as a whole or lifting moderate weight of components in the transmission and distribution lines construction. Its safety factor can reach 2.5. The maximum output force of hand crank winch is up to 5kN.

Uses: Aluminum Alloy Tubular A-Shape Gin Pole With Manual Winch For Tower Erection,For small pole erection in line construction
Notes:Aluminum Alloy Tubular A-Shape Gin Pole With Manual Winch For Tower Erection
1. The maximum output force of the manual winch is 5 kN
2. Use high strength aluminum alloy tube as main materials, steel parts are galvanized.
3. Fixed style head part mounted with tri-pulley
4. The safety factor is 2.5
5. Recommend using 7mm steel wire rope, the workable length is 9 times the length of the gin pole
6. Recommend using iron hoisting block (#11203, hook type).

Aluminum Alloy Tubular A-Shape Gin Pole With Manual Winch For Tower Erection Technical Data

Item Number Model Base Stroke (m) Allowable Vertical Load without Winch (kN) Applicable Wire Pole in Use of Hand Crank Winch Weight (kg/m)
Maximum Length (m) Maximum Weight (kg)
Hoisting Directly Using Double Sheave Block Using Triple Sheave Block
03331 LBGR100J-6 2.1 18 9   600 720 5.5
03332 LBGR100J-7 2.4 13 11   550 700
03341 LBGR120J-6 2.1 30 9 550 1050 1280 7.5
03342 LBGR120J-7 2.4 26 11 550 870 1040
03343 LBGR120J-8 2.8 21 13   700 840
03351 LBGR150J-8 2.8 31 13 550 1100 1500 8
03352 LBGR150J-9 3.1 28 15 550 1100 1500
03353 LBGR150J-10 3.5 24 17 550 1050 1280
03354 LBGR150J-11 3.8 20 19 550 980 1160

LBGR100J Model 5 KN Tower Erection Tools Fixed Style With Manual Winch 0
