Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame

Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame
Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame

Large Image :  Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: Duct Rodder
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Detailed Product Description
Name: Fiberglass Rodder Apply: Pulling Cable Line
Color: Blue Length: 300mm
Diameter: 11mm Frame: Wheeled Frame
High Light:

conductor pulling tools

,

stringing pulling tools

,

11mm Fiberglass Conduit Rodder

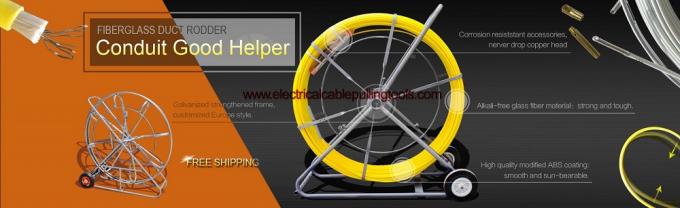

Galvanized Strengthened Frame Fiberglass Duct Rodder Conduit Good Helper



Fibergalss duct rodder, Conduit good help has the galvanzied strengthened frame, with customized Europe stryle.

The Corroison resiststant accessories,never drop copper head, and Alkali-free glass fiber material, strong and tough, High quality modified ABS coating, smooth and sun bearable.

Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame 0

Choose Rodder from Professional Duct Rodder Supplier

Lingsheng machinery manufacturing Co., Ltd., is a pioneering enterprise in fiberglass product industry. We have been dedicating to producing high quality, customized fiberglass duct rodder (FRP duct rodder). we offers one of the most comprehensive range of duct rodder available anywhere in the world with excellent performance in practical use, from the smallest 4.5 mm diameter to the rugged 16 mm duct rodder.



What Can Duct Rodder Do for Me?

Rodder is used in optical cable laying, communication cable laying as well pipe dredge and cleaning in conduit. So we called this cable rodder as its assist for cable operation, and conduit rodder as its working place, or fiberglass rodder as its mainly material is glass fiber. In infrastructure, especially the manhole-to-manhole work or long-run cable pulls, when trying to reach cables at the end of a long conduit, Electricians and plumbers alike could always use a hand, or even an arm and a leg. It’s dangerous and inefficient. With the duct rodder will make the job easy and help you in pulling cables and lines through conduits, tubes, pipes or ducts. All of this belong to fiberglass rodder has minimum bending radius for 105 mm (4.13 inch) and max tensile strength for 2.5 T.

Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame 1Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame 2

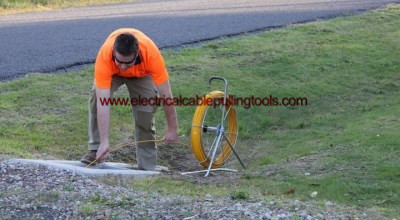

Photo 1):  we supply 4.5 mm to 16 mm rodders for cable laying even the conduit diameter from 50 mm to 450 mm.

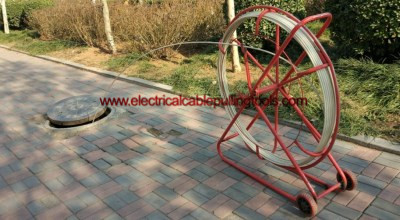

Photo 2):  with the help of accessories conduit cleaner, rodder can make the cleaner job so easy.

Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame 3

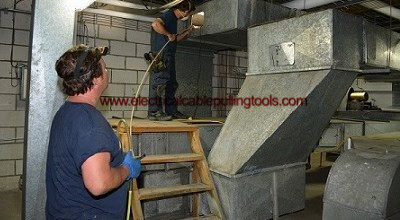

Photo 3): traceable duct rodder help you find blocker by its detectable founction .



Duct Push Rodder

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

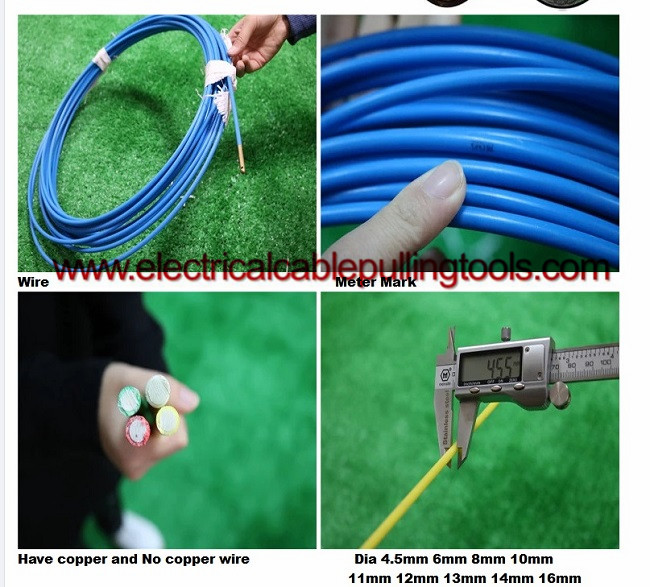

Diameter 11mm Fiberglass Conduit Rodder Galvanized Strengthened Frame 4
