Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material

Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material
Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material

Large Image :  Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: SH
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Get the latest
Packaging Details: Carton or wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
Material: Nylon Model: SH450J
Raduis: R450mm, R700m Block Number: 3
Weight: 7.7kg Angel: 45°,90°
High Light:

conductor pulling tools

,

stringing pulling tools

Telecom Cable Guide Roller For Manhole, Pithead Roller, Manhole Lead In Roller



Pithead Rollers Notes:
1. Protect the conductor and pulling rope.

2.Leaning against the side of pithead directly while using.

Cable Guide Roller For Manhole Specification

Model SH450J SH700J3 SH700J6
Curvature radius(mm) R450 R700 R700
Maximum cable diameter(mm) Φ100 Φ160 Φ160
Block number 3 3 6
Deviation angle('') 45 45 90
Weight(kg) 7.7 14 23

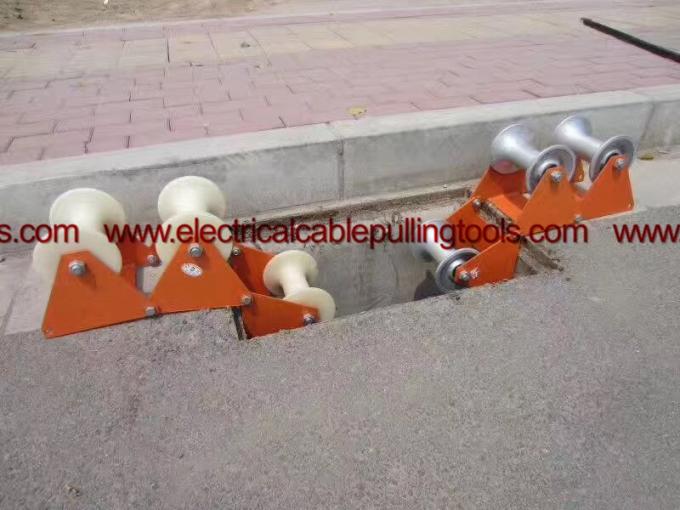

Edge Mount Manhole Lead In Cable Roller

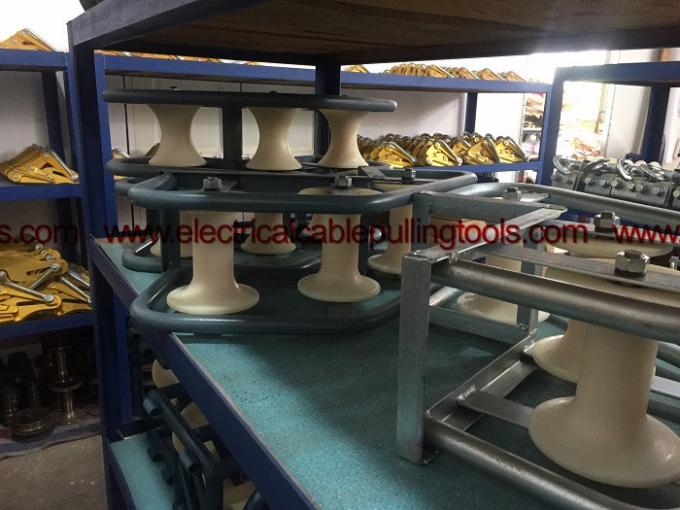

Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material 0 Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material 1

1) In order to keep the cables in the best condition, cable rollers should always be used when pulling cables but especially in circumstances where the installation area is sharp or abrasive. Cable Rollers also make pulling the cable that much easier as there is less friction between the cable and the surface of the ground.

2) Cable Rollers are used so that when the cable is being pulled, it runs along the roller and not on the ground.

3) Rollers are available in a range of sizes and can hold a variety of different weights depending on the size of cable. They are also available for applications with inclines and corners.

4) These rollers keep the cable being pulled safe from any damage the surface may cause and also keep them out of any mud or muck that may be at the bottom of the trench. It is advised to not leave cables lying over-night. Prolonged exposure to the elements during the installation process can cause damage to the cables.

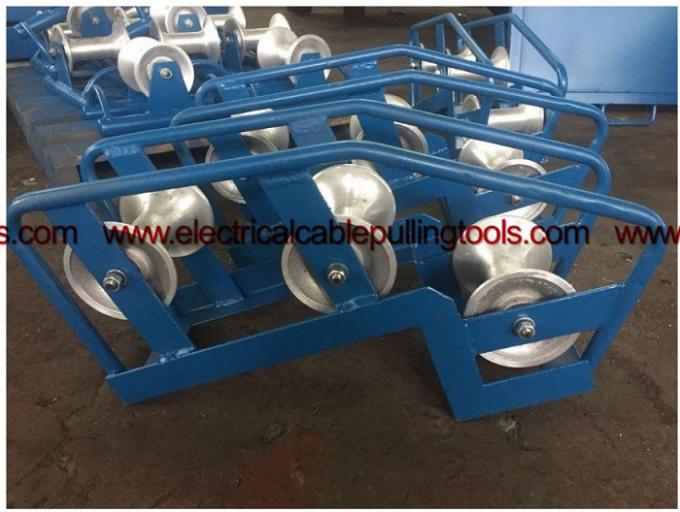

Pithead Telecom Cable Guide Roller 3 Block For Manhole Nylon Material 2
