Durable Hydraulic Crimping Tool 70Mpa Hand Pump Petal Type With Hydraulic Jack

Durable Hydraulic Crimping Tool 70Mpa Hand Pump Petal Type With Hydraulic Jack
Durable Hydraulic Crimping Tool 70Mpa Hand Pump Petal Type With Hydraulic Jack Durable Hydraulic Crimping Tool 70Mpa Hand Pump Petal Type With Hydraulic Jack

Large Image :  Durable Hydraulic Crimping Tool 70Mpa Hand Pump Petal Type With Hydraulic Jack

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CP700
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: paper box
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets/day
Detailed Product Description
Type: Foot And Hand Out Put O Oil: Low Pressure 13cc
Piston Direction: Double Packing: Carton Box
MOQ: 1set
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

70Mpa Hydraulic Hand Pump Price Manual Pump / Petal Type Pump with Hydraulic Jack



hand operated hydraulic pump

Application: Supply pressurized oil to compatible tools

Single-Acting Hand Operated

Rated Pressure: 700Bar (10000psi)

Oil Reservoir: 900CC

Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar

Oil Delivery Speed: Low Pressure 12.26cc/stroke High Pressure 2.26cc/stroke.

manual hydraulic pump

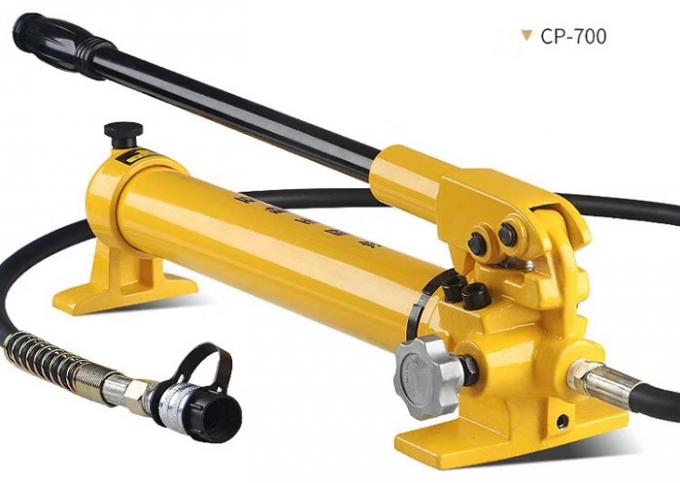

Hand Hydraulic Pump CP-700 is a Hand-operated Single-Acting pump.

It is used to provide pressurized oil to compatible remote control single-acting tools:

Crimping Head / Cutting Head / Cylinder / Pipe bender / Busbar tools etc.

Where 700Bar (10000PSI) working pressure is needed. With PT 3/8" quick coupler,

pumps can be quickly connected with compatible tools. Double speed unit and safety valve assembled inside make operation fast and safe



Hydraulic Hand Pump Price Manual Pump / Petal Type Pump with Hydraulic Jack

Item number

16164C 16164 16164A 16164B

Model

CP-180 CP-700 CP-700A CFP-800B

Type

hand hand hand foot pump

Max output

pressure

/ low pressure 2Mpa low pressure 2Mpa low pressure 2Mpa
high pressure 70MPa high pressure 70Mpa high pressure 70Mpa high pressure 70Mpa

Output of

the oil

/ low pressure 13cc low pressure 13cc low pressure 13cc
high pressure 1.8cc

high pressure 2.3cc

high pressure 2.3cc high pressure 2.3cc

Oil capacity

350cc 900cc 2700cc 600cc

Direction

of piston

single double double double

(KG)

Weight

approx.N.W9.5KG

G.W10.9KG

approx.N.W9.5KG

G.W10.9KG

approx.N.W14.1KG

G.W15.5KG

approx.N.W9.8KG

G.W10.8KG

(LxWxH)

Measurement

340×60×120mm 700x100x160mm 700x100x200mm 520x160x170mm

Package

paper box paper box paper box paper box


Durable Hydraulic Crimping Tool 70Mpa Hand Pump Petal Type With Hydraulic Jack 0
