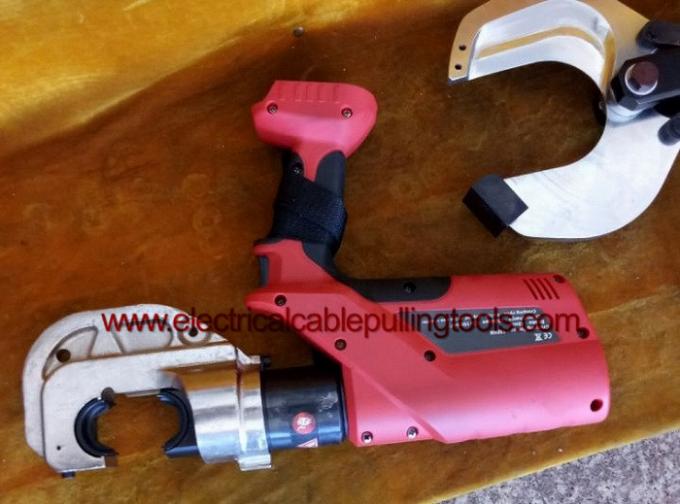

Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity

Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity
Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity

Large Image :  Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: HT-Z1
Payment & Shipping Terms:
Minimum Order Quantity: 2set
Price: get the latest
Packaging Details: plastic box
Delivery Time: 2-3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/week
Detailed Product Description
Model: HT-Z2 Crimping Range: 16-300mm2
Crimp Charge: 320times(CU150mm2) Voltage: 18V
Capacity: 3.0Ah Stroke: 17mm
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Hydraulic Crimping Pliers Portable Battery Electrical Crimping Tools 16-300mm2





Charging Hydraulic Crimping Pliers

Accessories:dies:HT-Z1 16,25,35,50,70,95,120,150,185,240,300,400mm²

HT-Z2 16,25,35,50,70,95.120,150,185,240,3000mm²

battery:2pcs Charger:1pcs sealing ring of cylinder:1set

sealing ring of safety valve:1set

Feature:

The head can be rotated at 360 degrees.(HT-Z1/HT-Z2)

When the joint is completed,the machine will stop and return to the position automatically.

It can be manually returned when necessary.

18V,3A lithium battery. One key operation.

Automatic power off function.

Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool

Item number

16209A 16209

Model

HT-Z1 HT-Z2

(KN)

Crimping

force

60KN 60KN

Crimping

range

16-400mm² 16-300mm²

Crimp

charge

250times(CU150mm²) 320times(CU150mm²)

Crimping

cycle

3s-6s(depend on the size of cable) 3s-6s(depend on the size of cable)

Stroke

35mm 17mm

voltage

18V 18V

Capacity

3.0Ah 3.0Ah
Charging

time

2hours 2hours

(KG)

Weight

approx.N.W10KG

G.W17KG

approx.N.W8KG

G.W15KG

Package

plastic box plastic box



Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity 0

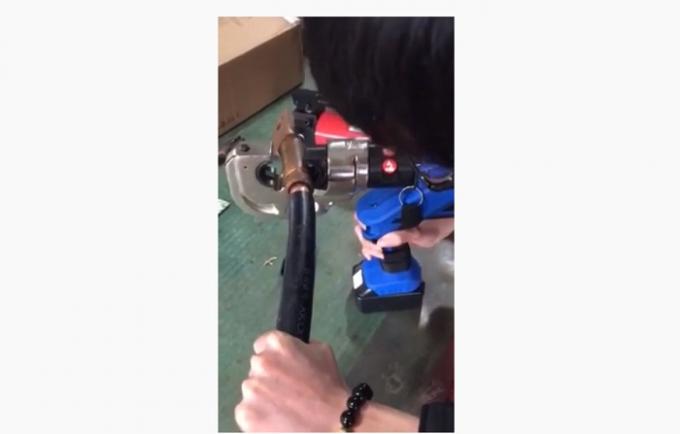

PLEASE CLICK THE BELOW PHOTO TO VISIT THE APPLICAITON ON OUR YOUTUBE WEBSITE



Portable Hydraulic Crimping Pliers Electrical 3.0Ah Battery Capacity 1
